Dell PowerEdge R350 Rack Server – Intel Xeon E-2314 4-Core, 16GB DDR4 ECC, 1x 4TB SAS HDD, PERC H355 RAID, 4-Bay 3.5in Hot-Plug, No PSU, 3-Year Warranty | R35013A-4TB-H355-NO PS
SKU DELL-R35013A-4TB-H355-NO-PSModel PowerEdge R350Part No R35013A-4TB-H355-NO PSPrice on request
Prices on this item move with the market, so we quote it directly. Send us a message and we will come back with today's best price and availability.
- Delivery across the UAE — options and charges
- Returns on eligible items — what qualifies
- 3 Year Warranty warranty — how claims work
- Secure payment — your card details never reach us
Key features
- NameDell PowerEdge R350 Rack Server
- RAM16GB DDR4-3200 ECC UDIMM
- Storage1 x 4TB 7.2K RPM SAS ISE 12Gbps 512n 3.5in Hot-Plug HDD
- GraphicsIntegrated Matrox G200, 16MB Video Frame Buffer
- DisplayNot Included – Rack Server Requires External Monitor / Remote Management
- SeriesPowerEdge
Description
Dell PowerEdge R350 is a 1U single-socket rack server designed for small and medium business workloads. This supplier configuration uses an Intel Xeon E-2314 processor with 4 cores and 4 threads, 16GB DDR4-3200 ECC UDIMM memory, one 4TB 7.2K RPM SAS 12Gbps 3.5-inch hot-plug hard drive and a PERC H355 hardware RAID controller. The 4-bay chassis supports up to four 3.5-inch SAS/SATA drives and includes dual 1GbE onboard networking. The supplier code states NO PS, so no power supply is recorded as installed; the R350 platform supports up to two 600W AC Platinum PSUs.
Specifications
General
- Name
- Dell PowerEdge R350 Rack Server
- Model
- PowerEdge R350
- RAM
- 16GB DDR4-3200 ECC UDIMM
- Storage
- 1 x 4TB 7.2K RPM SAS ISE 12Gbps 512n 3.5in Hot-Plug HDD
- Graphics
- Integrated Matrox G200, 16MB Video Frame Buffer
- Display
- Not Included – Rack Server Requires External Monitor / Remote Management
Product
- Brand
- Dell Technologies
- Series
- PowerEdge
- Model
- PowerEdge R350
- Supplier Configuration Code
- R35013A-4TB-H355-NO PS
- Supplier Code Status
- Supplier / reseller bundle code
- Form Factor
- 1U Rack Server
- Processor Sockets
- 1
- Chassis
- 4 x 3.5-inch Hot-Plug Drive Bays
- Condition
- Brand New / Supplier Stock Description
- Barcode / EAN
- Left Blank Because a Reliable Exact EAN / UPC Was Not Verified
Processor
- Processor
- Intel Xeon E-2314
- Family
- Intel Xeon E-2300 Series
- Codename
- Rocket Lake
- Cores
- 4
- Threads
- 4
- Base Frequency
- 2.80GHz
- Maximum Turbo Frequency
- Up to 4.50GHz
- Cache
- 8MB Intel Smart Cache
- TDP
- 65W
- Socket
- FCLGA1200
- PCI Express
- PCIe 4.0, Up to 20 CPU PCIe Lanes
- ECC Support
- Yes
- Intel vPro Eligibility
- Intel vPro Platform
Chipset
- Chipset
- Intel C256 Series Platform
Memory
- Installed
- 16GB DDR4-3200 ECC UDIMM
- Type
- DDR4 ECC UDIMM
- Speed
- 3200 MT/s
- DIMM Slots
- 4
- Channels
- 2
- Maximum Platform Memory
- Up to 128GB DDR4 ECC UDIMM
- ECC
- Yes
Storage
- Installed Drives
- 1
- Installed Capacity
- 4TB
- Drive Type
- Enterprise SAS HDD
- Rotational Speed
- 7,200 RPM
- Interface
- SAS 12Gbps
- Sector Format
- 512n
- Form Factor
- 3.5-inch Hot-Plug
- Chassis Bays
- 4 x 3.5-inch SAS / SATA Hot-Plug
- Maximum Bays
- 4 LFF Drives on This Chassis
RAID
- Controller
- PERC H355 Adapter
- Controller Type
- Hardware RAID, No Cache
- SAS Speed
- 12Gbps SAS
- Supported RAID Levels
- RAID 0, 1, 10
- Parity RAID
- RAID 5 / 6 Not Supported by H355
Networking
- Embedded NIC
- Broadcom 5720 Dual-Port 1GbE LOM
- Ethernet Ports
- 2 x 1GbE RJ-45
- Data Rates
- 10 / 100 / 1000 Mbps
Management
- iDRAC
- iDRAC9 Supported
- Typical Similar Configuration
- iDRAC9 Express 15G is used on comparable E-2314 / H355 R350 configurations
- OpenManage
- Dell OpenManage Platform Support
Graphics
- Controller
- Matrox G200
- Video Memory
- 16MB
- Rear Video
- 1 x VGA
- Maximum Supported VGA Resolution
- Up to 1920 x 1200 depending on refresh rate
Ports
- Front USB 2.0
- 1
- Front iDRAC Direct
- 1 x Micro-AB USB 2.0 Management Port
- Rear USB 3.0
- 1
- Rear USB 2.0
- 1
- Rear VGA
- 1 x DB-15 VGA
- Serial
- 1 x 9-Pin Serial Port
- Ethernet
- 2 x 1GbE RJ-45
- iDRAC Dedicated Port
- Available Depending on iDRAC / System Configuration
Expansion
- PCIe
- Up to 3 PCIe Gen4 Slots Depending on Riser Configuration
- Architecture
- PCIe Gen4 Platform
Operating System
- OS Included
- Not Specified by Supplier
- Common Retail Configuration
- No Operating System
- Supported OS
- Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Canonical Ubuntu Server, VMware / Hypervisor Options
Power
- Installed PSU
- None / NO PS per Supplier Description
- Supplier Code
- NO PS
- Platform Support
- Up to 2 x 600W AC Power Supply Units
- Supported PSU Class
- 600W AC Platinum
- Supported Input
- 100-240V AC, 50/60Hz, Autoranging
- Important Note
- Server requires a compatible Dell R350 PSU before operation if NO PS literally means no power supply
Cooling
- Fans
- Up to 4 Non-Hot-Plug System Fans
Dimensions
- Rack Height
- 1U
- Width
- 482.0 mm
- Chassis Width
- 434.0 mm
- Height
- 42.8 mm
- Depth Ear to Rear Wall
- 534.59 mm for 4 x 3.5-inch chassis
- Depth Ear to PSU Handle
- 563.3 mm for 4 x 3.5-inch chassis
Weight
- Maximum
- 13.14 kg with all drives / SSDs on 4 x 3.5-inch chassis
Security
- TPM
- TPM 2.0 Supported
- Secure Boot
- UEFI Secure Boot Platform Support
- System Lockdown
- Supported with Appropriate iDRAC License
Warranty
- Standard Warranty
- 3 Year Warranty
- Service Level
- Supplier states 3 years
Use Case
- File and Print Services
- Yes
- Web Hosting
- Yes
- Small Business Applications
- Yes
- Entry Virtualisation
- Yes, subject to memory / storage configuration
- Backup / Storage Workloads
- Yes
Source
- Dell R350 Technical Specifications
- https://downloads.dell.com/topicspdf/poweredge-r350_Owners-Manual2_en-us.pdf
- Dell R350 Video Specification
- https://www.dell.com/support/manuals/en-us/poweredge-r350/r350_ts_ism_pub/Video-specifications
- Dell R350 PSU Specification
- https://www.dell.com/support/manuals/en-ca/poweredge-r350/r350_ts_ism_pub/psu-specifications
- Intel Xeon E-2314 Official
- https://www.intel.com/content/www/us/en/products/sku/212259/intel-xeon-e2314-processor-8m-cache-2-80-ghz/specifications.html
Reviews
No reviews yet for Dell PowerEdge R350 Rack Server – Intel Xeon E-2314 4-Core, 16GB DDR4 ECC, 1x 4TB SAS HDD, PERC H355 RAID, 4-Bay 3.5in Hot-Plug, No PSU, 3-Year Warranty | R35013A-4TB-H355-NO PS. Be the first to write one.
Related Products
See more Servers
Dell PowerEdge R350 4-Bay Rack Server – Intel Xeon E-2314 4-Core, 16GB DDR4 ECC, 2.4TB 10K SAS HDD, PERC H355, Dual 700W Titanium PSU | PER35013A-2.4TB
Price on request
Dell PowerEdge R760xs Barebone Rack Server – 128GB DDR5 ECC RDIMM, No CPU, No HDD/SSD, No PSU, Matrox G200, 2U Chassis | R760XS-NOCPU HDD PS
Price on request
Dell PowerEdge T350 Tower Server – Intel Xeon E-2314 4-Core, 16GB DDR4 ECC, 2TB 7.2K SATA HDD, PERC H355, Dual 600W Hot-Plug PSU, 3-Year Warranty | PET3501A-16GB-2PS
Price on request
Dell PowerEdge R760xs Rack Server, Intel Xeon Silver 4410Y, 16GB RAM, 2.4TB 10K HDD, iDRAC9 Enterprise 16G, Broadcom 5720 Dual Port 1Gb On-Board LOM, 2x 700W PSU | R760xs
Price on request

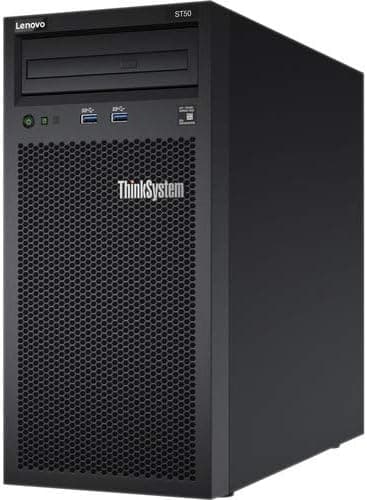

Lenovo ThinkSystem ST50 V2 Tower Server – Xeon E-2324G, 16GB ECC DDR4, 2×960GB Micron 5400 PRO SSD, 500W | 7D8JA043EA (Upgradeable)
Price on request

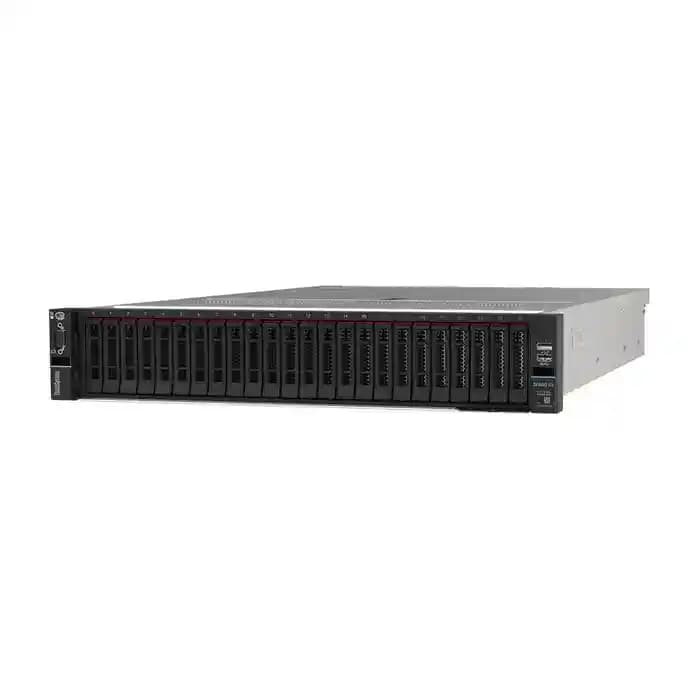

Lenovo ThinkSystem SR650 V3 2U Rack Server – Xeon Silver 4510, 64GB DDR5, RAID 940-8i 4GB, 8×2.5" Bays, 1100W | 7D76A05JEA
Price on request

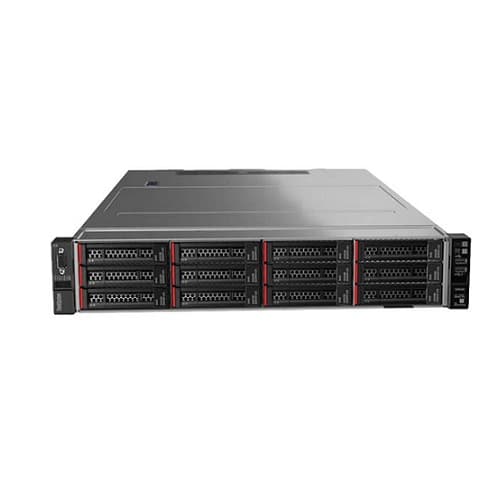

Lenovo ThinkSystem SR590 2U Rack Server – Xeon Silver 4210R, 16GB DDR4, 3×600GB 10K SAS, RAID 930-8i, 2×750W | 7X99A08VEA
